1-770966-0
TE Connectivity / Amp BrandWire-To-Board Connector - Right Angle - 4.14 mm - 2 Contacts - Header - Mini Universal MATE-N-LOK Series. .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
TE Connectivity / Amp Brand
Part No:
1-770966-0
RoHS:
Yes
HTS:
8536694040
COO:
US
ECCN:
EAR99
Package Type:
Bag
Type:
Power
Body Orientation:
Right Angle
Mounting:
Through Hole
Gender:
HDR
Number of Contacts:
2
Termination Method:
Solder
Maximum Voltage Rating:
600 VAC
Maximum Current Rating:
9.5/Contact A
Operating Temperature:
N/A
The 1-770966-0 is Mini Universal MATE-N-LOK right angle mount PCB pin headers with 4.14mm centerline for wire to board applications preloaded with tin or gold plated pin contacts. These Mini Universal MATE-N-LOK right angle mount PCB pin headers have white UL94V-0 nylon housings that incorporate a positive locking latch mechansim to ensure secure mating and board locks to facilitate PCB retention.
Product Highlights:
- Header
- Mini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2
- Number of Circuits = 2
- 4.14 mm Centerline, Matrix
- In-Line Contact Layout
Search Keywords:
17709660
IN STOCK:
6,263
Can Ship immediately
Minimum Order:
200
Multiple:
200
Factory Lead-Time
12 Weeks
Price (CAD)
Quantity
Unit Price
Ext. Price
200
$0.996
$199.200
400
$0.973
$389.200
600
$0.968
$580.800
1,000
$0.961
$961.000
2,600
$0.957
$2,488.200
5,000
$0.952
$4,760.000
7,600
$0.948
$7,204.800
10,000
+
$0.944
$9,440.000
Click for Quote
DOWNLOADS
CUSTOMERS
ALSO BOUGHT
![796634-3](https://www.e-sonic.com/images/parts/largeimages/10494179.jpg)
796634-3
3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line...
![796634-4](https://www.e-sonic.com/images/parts/largeimages/10494180.jpg)
796634-4
Pluggable Terminal Block - 5.08 mm - 4 Ways - 30 AWG - 12 AWG - 3 mm² - Screw.
![796638-6](https://www.e-sonic.com/images/parts/largeimages/10494214.jpg)
796638-6
6POS 5.08MM CE R/A HDR,TRM BLK
![10-89-7041](https://www.e-sonic.com/images/parts/largeimages/11830940.jpg)
10-89-7041
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole C-Grid® Bag

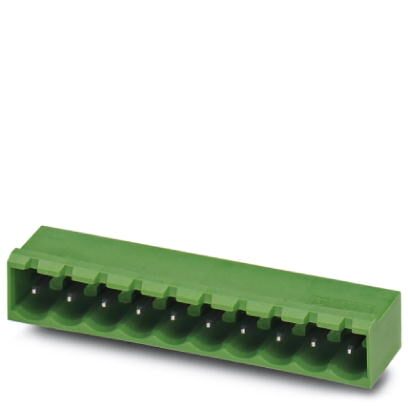

![1757255](https://www.e-sonic.com/images/parts/largeimages/12140620.jpg)
