DATA SHEET

1511857

Phoenix Contact

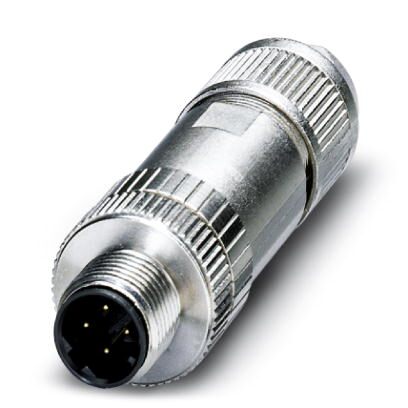

Connector - Universal - 8-position - shielded - Plug straight M12 - A-coded - Screw connection - knurl material: Zinc die-cast - nickel-plated - cable gland Pg9 - external cable diameter 6 mm ... 8 mm .. see full description

  • RoHS Compliant
  • Packaging
  • Accessories
  • Set Notification
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Phoenix Contact
Part No:
1511857
RoHS:
Yes
HTS:
8536694020
COO:
CN
ECCN:
EAR99
Type:
M12 Circular
Gender:
PL
Body Orientation:
Straight
Mounting:
Cable Mount
Shell Size / Insert Arrangement:
N/A
Number of Contacts:
8
Contact Gender:
Pin
Contact Plating:
Gold
Termination Method:
Screw
Maximum Current Rating:
2 A
Maximum Voltage Rating:
30 V
1511857 is an 8-position, straight plug, shielded, universal M12 connector. It features 360° shielding which enables reliable signal transmission in environments with electromagnetic interference. This A-coded connector is screw connected, which is a proven connection technology for a large selection of different conductors. Contact material is made of Copper Zinc in gold finish while knurl material is nickel-plated zinc die-cast. The product has Pg9 cable glands, housing diameter of 20mm, length of 62mm, and external cable diameter of 6mm to 8mm. Conductor cross section is 20 to 24 AWG.
Search Keywords:
1511857
IN STOCK: 56
Can Ship immediately
Manufacturer Stock:
144   can ship 7/8/24
Factory Lead-Time
5 Weeks can ship 8/12/24
Enter Quantity
Price (CAD)
Quantity
Unit Price
Ext. Price
1
$61.384
$61.384
5
$54.076
$270.380
10
$49.372
$493.720
25
$48.152
$1,203.800
50
$47.214
$2,360.700
100
$46.276
$4,627.600
250 +
$45.383
$11,345.750
Click for Quote
DOWNLOADS
PDF Datasheet
Request Free CAD Models
