2TL1-3D
HoneywellMICRO SWITCH™ Toggle Switches: TL Series, Double Pole Double Throw (DPDT) 2 Position (On - On), Screw Terminals, Locking Lever (Locked Out Of Center Position), Military Part Number MS24659-23D .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
2TL1-3D
RoHS:
Yes
HTS:
85365000
COO:
US
ECCN:
EAR99
Package Type:
Box
Pole Throw Configuration:
2P2T (DPDT)
Switch Configuration:
On None On
Contact Rating @ Voltage:
745.7 A
Actuator Style:
Locking Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight

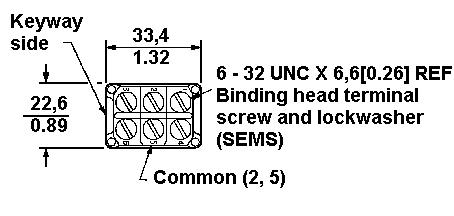

Terminal Type:
Screw
Dimension:
34.04 x 23.11 x 75.18 mm
Operating Temperature:
-65 to 71 °C
<p>Toggle Switches are manually actuated by means of a projecting lever, such as mechanical lever, handle or a rocking mechanism. These electrical switches are available in many different styles and sizes. They are generally used in industrial machinery and equipment, military and commercial aviation, construction equipment, test instruments, agricultural machinery, and medical instrumentation, among others.</p>
<p>2TL1-3D Toggle Switch from Honeywell features environment-proof sealing and temperature resistant characteristics. The switching chambers of this switch are completely sealed, while its step-design case offers an extra space between the terminals to help prevent shorting. This Locking Toggle Switch is also designed with a pull-to-unlock toggle lever to avert accidental operation. With a temperature range between -85°F to +160°F, this Honeywell Toggle Switch enables both maintained and momentary toggle action.</p>
Product Highlights:
- CE approved
- UL recognized, CSA certified
- Qualified to MIL-DTL-3950
- Environment-proof sealing
- 1, 2, and 4 pole circuitry
- Standard and pull-to-unlock levers
- 2 and 3 position, maintained and momentary toggle action
- Completely sealed switching chamber
- Temperature range: -85°F to +160°F
- Step-design case provides added space between terminals to help prevent shorting
Potential Applications:
<ul><li>Industrial machinery and equipment</li><li>Military and commercial aviation</li><li>Construction equipment</li><li>Test instruments</li><li>Agricultural machinery</li><li>Process control</li><li>Medical instrumentation</li></ul>Search Keywords:
