1TL1-3D
HoneywellMICRO SWITCH™ Toggle Switches: TL Series, Single Pole Double Throw (SPDT) 2 Position (On - On), Screw Terminals, Locking Lever (Locked Out Of Center Position), Military Part Number MS24658-23D .. see full description
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Honeywell
Part No:
1TL1-3D
RoHS:
Yes
HTS:
85365000
COO:
US
ECCN:
EAR99
Package Type:
Box
Pole Throw Configuration:
1P2T (SPDT)
Switch Configuration:
On None On
Contact Rating @ Voltage:
20@28VDC A
Actuator Style:
Locking Lever
Mounting:
Panel Mount with Threads
Thread Size:
15/32-32
Body Orientation:
Straight
Terminal Type:
Screw
Dimension:
28.4 x 15.7 x 72.9 mm
Operating Temperature:
-65 to 72 °C
<p>Toggle Switches are manually actuated by means of a projecting lever, such as mechanical lever, handle or a rocking mechanism. These electrical switches are available in many different styles and sizes. They are generally used in military and commercial aviation, agricultural machinery, and process control applications.</p>
<p>1TL1-3D Honeywell Switch features environment-proof sealing and has pull-to-unlock levers. The switching chambers are completely sealed, while its step-design case offers an extra space between the terminals to help prevent shorting. With a temperature range between -85°F to +160°F, Honeywell 1TL1-3D enables both maintained and momentary toggle action. This On On SPDT Switch is used in industrial machinery and equipment, construction equipment, test instruments and medical instrumentation.</p>
Product Highlights:
- Step-design case provides added space between terminals to help prevent shorting
- UL recognized, CSA certified
- CE approved
- Temperature range: -85°F to +160°F
- Qualified to MIL-DTL-3950
- Environment-proof sealing
- 1, 2, and 4 pole circuitry
- Standard and pull-to-unlock levers
- 2 and 3 position, maintained and momentary toggle action
- Completely sealed switching chamber
Potential Applications:
<ul><li>Industrial machinery and equipment</li><li>Military and commercial aviation</li><li>Construction equipment</li><li>Test instruments</li><li>Agricultural machinery</li><li>Process control</li><li>Medical instrumentation</li></ul>Search Keywords:
1TL13D
IN STOCK:
1,799
Can Ship immediately
Factory Lead-Time
13 Weeks
Price (CAD)
Quantity
Unit Price
Ext. Price
1
$81.999
$81.999
5
$77.697
$388.485
10
$70.508
$705.080
25
$65.001
$1,625.025
50
$63.363
$3,168.150
100
$62.113
$6,211.300
250
+
$60.892
$15,223.000
Click for Quote
DOWNLOADS
CUSTOMERS
ALSO BOUGHT

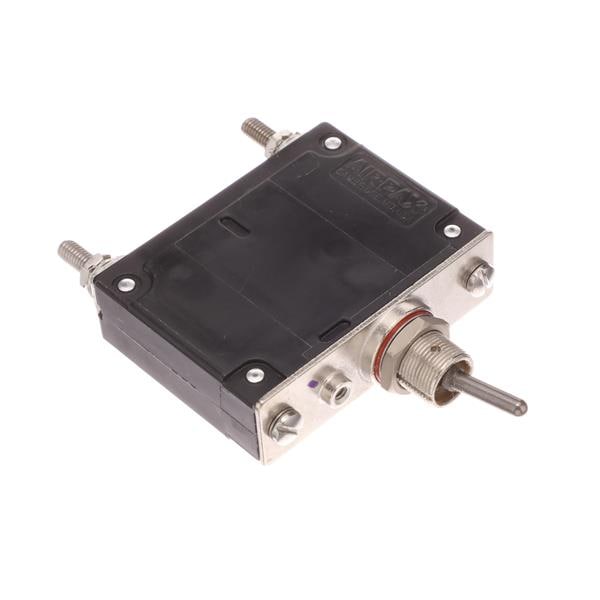

IULNK1-32119-3
